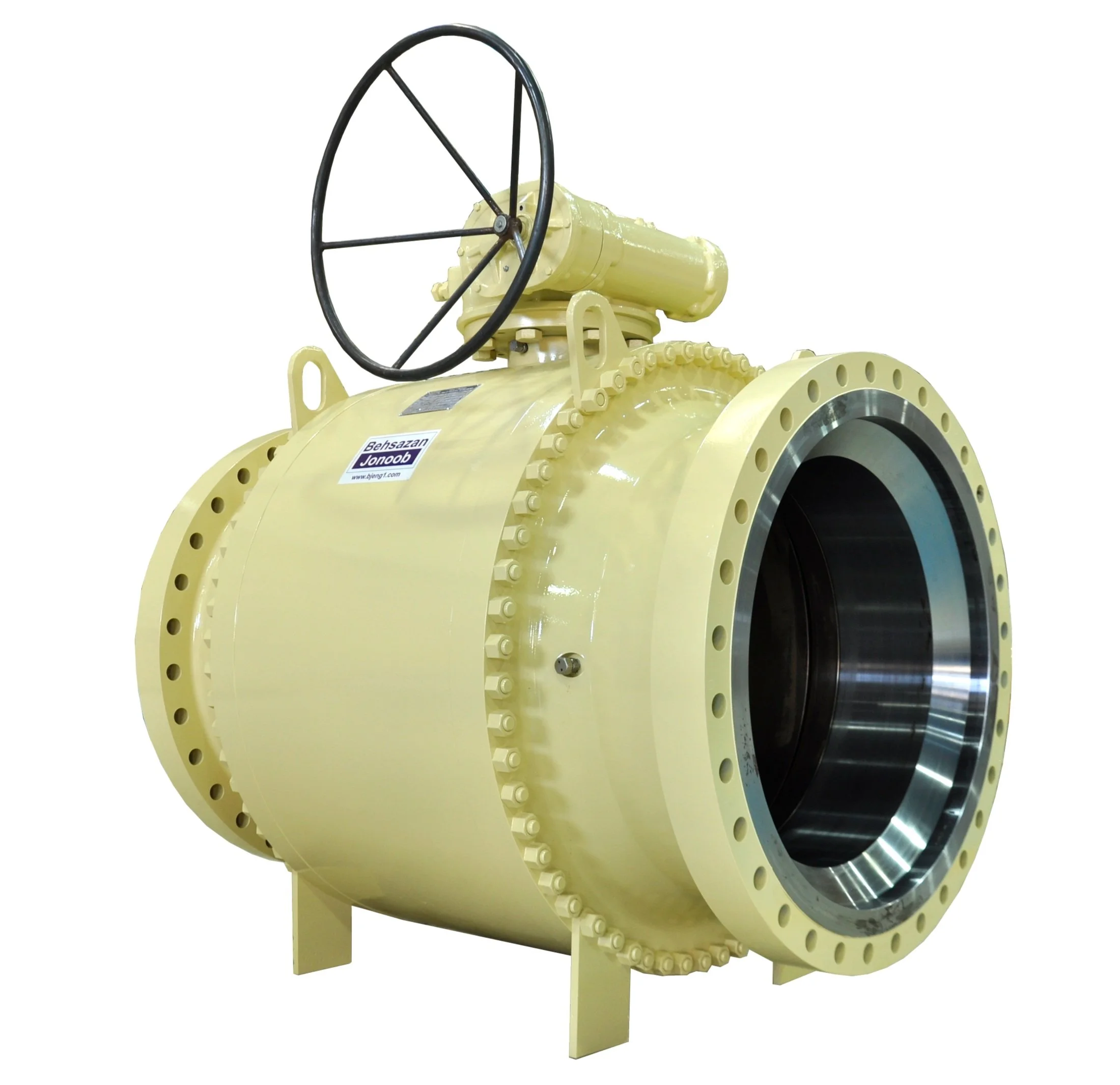

Ball Valve Products

Behsazan Jonoob designs and manufactures Ball Valve for a broad range of applications
in the Oil and Gas, Petrochemical industry. We are attempting to satisfy the needs of our
customers by achieving high quality and design.

• Specification: API 6A, API 6D, API 608, BS5351, ISO 17292 and Non-Standard Design

• Nominal Sizes (API 6A): 1 13/16" , 2 1/16", 3 1/8", 4 1/16", 7 1/16", 9", 11"

• Rating: 3000, 5000, 10000, 15000

• Nominal Sizes (API 6D): Up to 56"

• ANSI Class: #150, #300, #600, #800, #900, #1500, #2500, #4500

• Valve type: Trunnion Mounted, Floating

• Features: Side Entry, Top Entry & Fully Welded, Soft Seat, Metal Seat, PMSS Seat,
  Anti Static Device, Anti Blowout Stem, Double Block and Bleed, Double Isolation and Bleed,
  Extended Stem, Fire Safe Design, Partial Cladding, Fire Proof Jacket

• Fire Safe Design Standard: API 6FA, BS 6755, API 607

• Operation: Lever, Gearbox, Pneumatic/Hydraulic/Electro-Hydraulic/Electrical Actuator,
  Gas Over Oil/Gas Direct Actuator

• Service: General, Sour Service, Severe Sour Service, Cryogenic and High Temp. Service

• M/C(API 6A): AA, BB, CC, DD, EE, FF, HH

• T/R(API 6A): K, L, N, P, S, T, U, V

• PSL(API 6A): 1, 2, 3 PR(API 6A): 1, 2

• Material: Carbon Steel, Low Alloy Steel, Stainless Steel, Nickel Alloy, Duplex/Super Duplex

• NACE MR0175/ISO 15156 complianc
