High-Integrity Pressure Protection System (HIPPS)

The High Integrity Pressure Protection System (HIPPS) is a mechanical and electrical system designed in order to reduce the risk of over pressurization.

Behsazan Jonoob is a leading in :

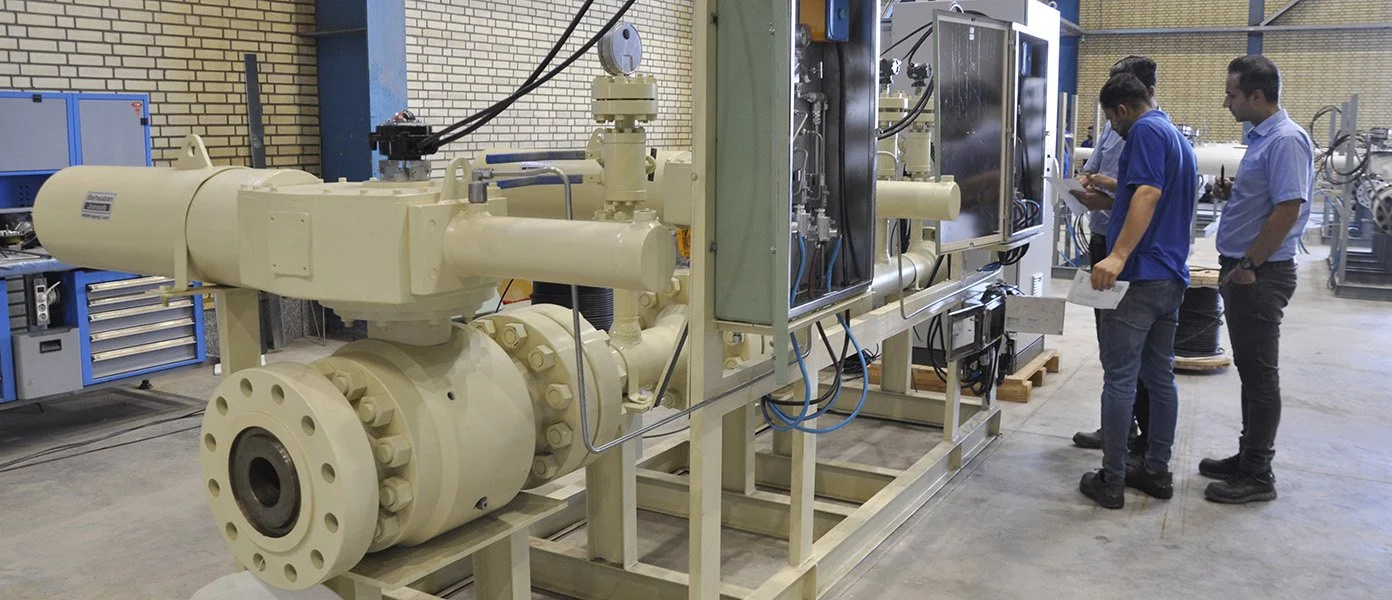

• Manufacture of SIL Certified Skid Mounted Valve Actuators with Local Control Panel & Fire Proofing feature.

• Integrator of HIMA SIL Certified Logic Solver Panel (HIQUAD X & All Accessories such as modules, Power Supply, Isolator Barrier, Safety Relay, ..)

• Supplier of Rittal Industrial Enclosure & Schneider HMI Display

• Supplier of SIL Certified Pressure Transmitter with Diaphragm Seal & Flashing Ring for Monitoring of Line Pressure.

Engineering, Design, Manufacturer and Assembly Completely in Behsazan Jonoob.

Initiators (Pressure Transmitter, Interlocking Manifold)

The pressure transmitters detect the high pressure in the system and the Safety loop may include a minimum of three transmitters, which operate in a 2oo3 voting logic, to achieve the SIL 3 requirement.

Logic Solver (PLC-Based, Rittal Cabinet)

A logic solver is an electric safety system that combines digital and analogue signals to monitor the status of the HIPPS inputs and determine if a safety valve has to be closed.

The logic solver normally operates fully autonomously.

Final Elements (Actuated Valve, Solenoid Valve)

The final elements are the physical units that are called upon to isolate the exposure, and are typically fail safe valves, open or closed using spring loaded, hydraulic or pneumatic actuators and solenoids.
